Espey WKA250ND

Request product

Espey WKA250ND

Espey WKA250ND
Request product

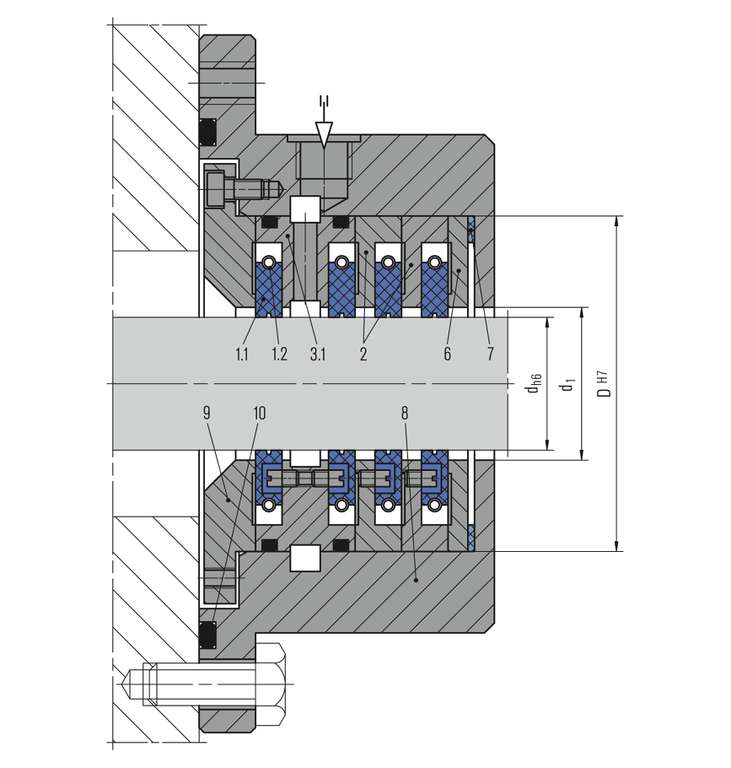

Item Description Variable
for width
1.1 Seal ring
1.2 Tension spring
2 Chamber A
2.1 Chamber with O-Ring A
3 Barrier gas chamber B
3.1 Barrier gas chamber with O-Rings B
4 Lantern chamber C
4.1 Lantern chamber with O-Ring C
5 Lantern thin E
5.1 Lantern wide F
6 End ring G
7 Flat seal H
8* Housing
9* Lid
10* O-Ring housing


* On request

Espey WKA250ND

Features

  • Chamber seal (modular design – can be combined in any order), optional with housing and lid
  • Multi-part seal rings, radially cut
  • Very small operation gap - low leakage
  • Dry running
  • Self-adjusting seal rings
  • Seal rings bear radial shaft movements
  • Compensates axial shaft movements
  • No sealing components mounted on the shaft and hence no additional shaft vibrations
  • Seal rings running contact-free - sliding faces and machine consume no additional power
  • Balanced seal ring inside chamber

Advantages

  • High reliability
  • Long-term operation time
  • Maintainability
  • Segmented seal rings for easy replacement

Operating range

Shaft diameter:
d = 20 ... 340 mm (0.79" … 13.39")
Operating pressure:
p = vacuum ... 15 bar (218 PSI) abs.
Operating temperature: t = -120 °C ... +500 °C (-184 °F … +932 °F) for carbon,
max. 225 °C (437 °F) for PTFE compound
Sliding velocity:
vg = max. 240 m/s (787 ft/s) for carbon,
max. 40 m/s (131 ft/s) for PTFE compound
Radial play: ±2.0 mm (±0.08")
Axial movement: theoretically unlimited
Recommended wear guard: >58 HRC

Materials

Seal ring: Carbon, PTFE compound
Chamber and housing parts: 1.4021, 1.4571, Hastelloy®, Titanium, Inconel®, others
Tension spring: 1.4571, Hastelloy®, Titanium, Inconel®,
Secondardy seal (elastomer): Fluorocarbon rubber (Viton®), Nitrile-butadiene-rubber (Perbunan®), Perfluorocarbon rubber (Kalrez®)
Secondary seal (flat gasket): Statotherm®-HT/HD, KSiL C 4400

Standards and approvals

  • FDA

Similar products

Espey Magna500+ the large seal for diameters from 500 mm

Espey Magna500+ the large seal for diameters from 500 mm

  • Split housing design
  • Segmented and self-adjusting seal rings
  • Virtually maintenance- and wearfree
  • Dry-running
  • Suitable for horizontal and vertical use

Read more

Espey WD200

Espey WD200

  • Split housing design
  • Multi-part seal rings, radially cut
  • Very small operation gap - low leakage
  • Dry running
  • Self-adjusting seal rings
  • Seal rings bear radial shaft movements
  • Compensates axial shaft movements
  • No sealing components mounted on the shaft and hence no additional shaft vibrations
  • Seal rings running contact-free - sliding faces and machine consume no additional power

Read more

Espey WD200/500

Espey WD200/500

  • Multi-part seal rings, radially cut on process side, overlapped mortised with gas tight joints on atmosphere side (adjusting)
  • Split housing design
  • Lowest possible operation gap - lowest leakage
  • Dry running
  • Self-adjusting seal rings
  • Seal rings bear radial shaft movements
  • Compensates axial shaft movements
  • Short axial installation length
  • No sealing components mounted on the shaft and hence no additional shaft vibrations

Read more

Contact

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.

Inquire now Discover reference projects
Back to the overview
